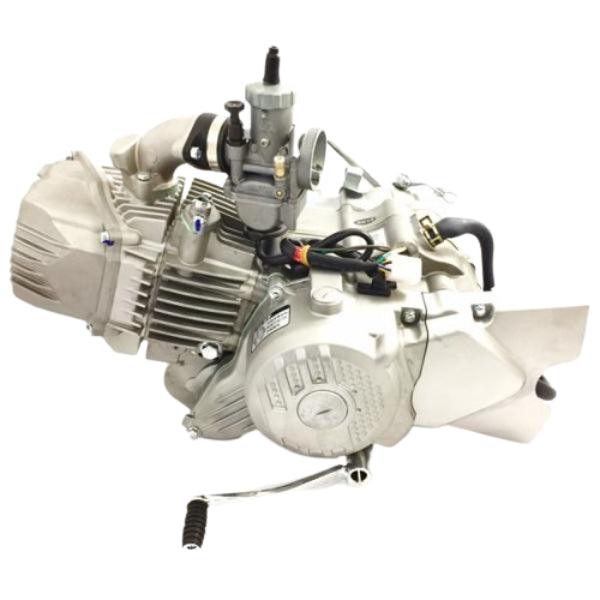

BS1458 - Zongshen 190cc Engine 2 Valves 5 Gears Silver with Electrical Starter

Complete engine Silver Zongshen 190cc 2V.

Gearbox 5 speed (1-0-2-3-4-5)

 Electrical starter with auto decompressor

12.35 kW at 9500 RPM (16.8hp)

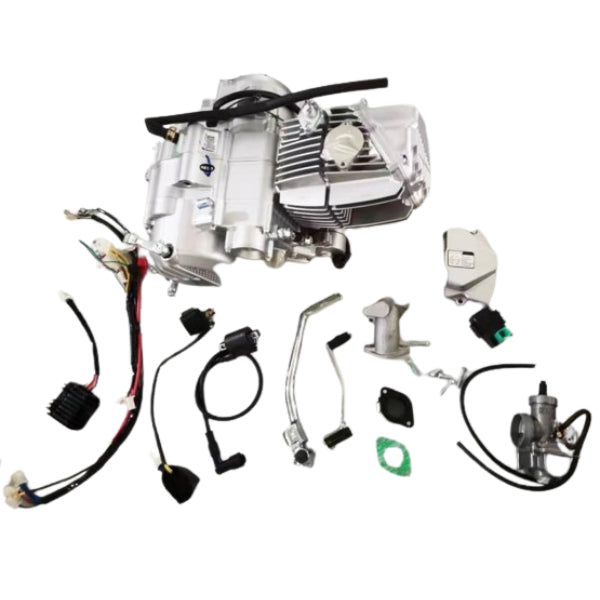

Provided with:

Kickstarter

 Inlet pipe

 High tension coil

 CDI

Connections to do :

2 wire Yellow for light and battery

1 wire Black/red for low tension to CDI

1 wire Blue/white for CDI pickup

1 wire green for the ground/massa

1 wire with the ring is + 12 volts for electric starter

1 wire  Green/red for neutral light
